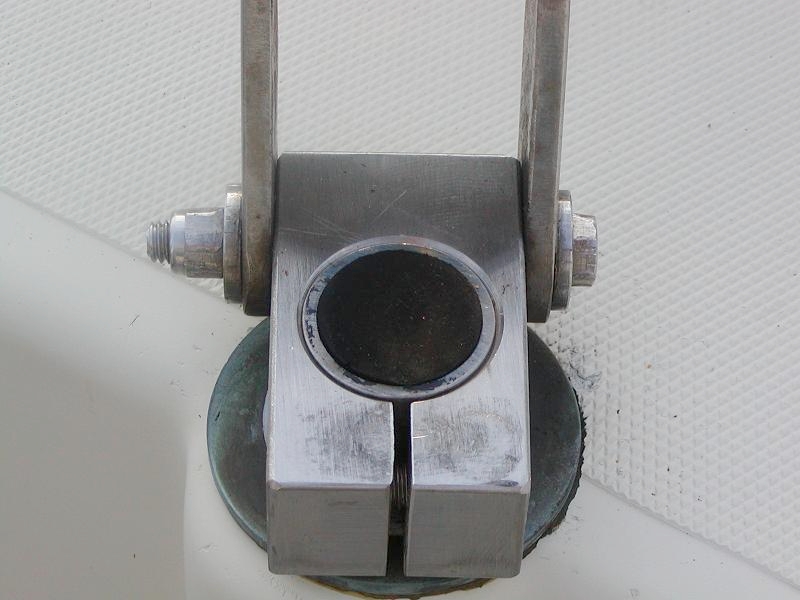

•A
stainless
block is
fashioned to clamp around the rudder post. The outside width of
the block should closely match the tiller width.
•A hole
closely fit to
the rudder post OD is bored top down in the center and a slot is cut to
it from the front of the block.
•Another
hole
is
cross-drilled through the slot for the clamp bolt.
One
side of the hole is opened and countersunk to clear a socket head
bolt.
The other side is threaded
to accept the bolt.
Tightening the bolt squeezes the slot and thereby clamps the post.

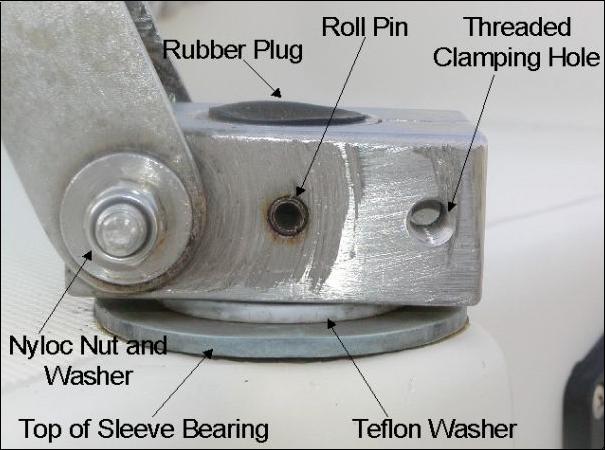

•A hole is
match-drilled
through the block and center of the rudder post to accept a roll pin,
and the pin is installed. The roll pin is an interference fit and
must be tapped or squeezed into place.•

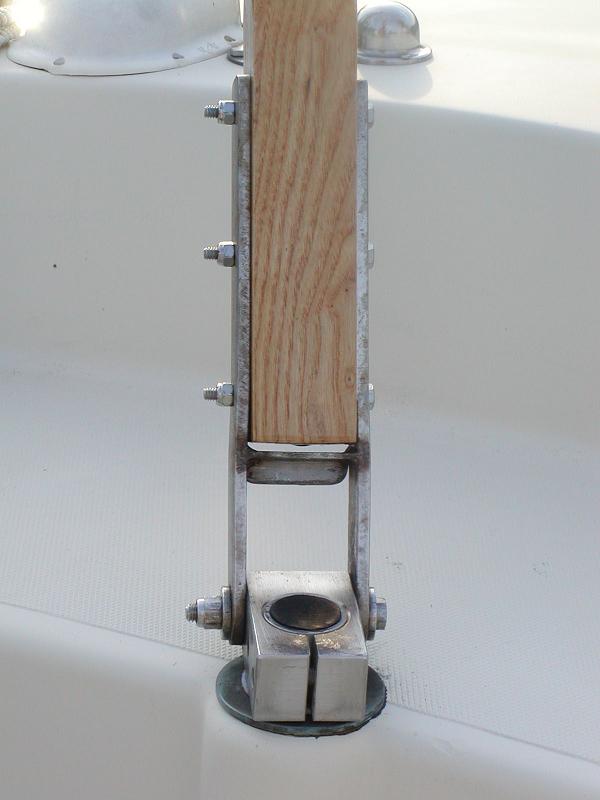

An H-shaped piece to form the tiller head must be fabricated.
One set of legs of the H will clamp to the tiller, the other set will
fit along side and be bolted to the rudder head at the back end.
It is important that the H legs closely fit their mating parts.
A snug
clearance hole
for the hinge bolt is cross-drilled through the back of the block. •A locking
nut
with
nylon
insert (Nyloc) is used to secure the hinged Tiller Head to the Rudder
Head block theough the hole. The tiller is attached with three
evenly-spaced bolts through the legs and tiller.
